Axon Server

The client for Axoniq Platform has been built into Axon Server since version 2024.0.0. This means that you do not need to install a separate client to connect Axon Server to Axoniq Platform.

Connection technology

The Axon Server connector has been designed with privacy concerns in mind. It only collects metrics and health information, and does not collect any sensitive information. All information is sent over a secure SSL connection using the RSocket protocol.

Functionality

The connector supports the following functionality when enabled:

Firewall configuration

The Axon Server connector needs to establish a connection to the Axoniq Platform servers. This happens over port 7001 to IP address 34.111.249.186. If your organization has a firewall, you need to allow this connection.

Installation

The installation depends on how you want to install Axon Server. When you go to "Axon Server" page in your Axoniq Platform, you will see a button to start the installation.

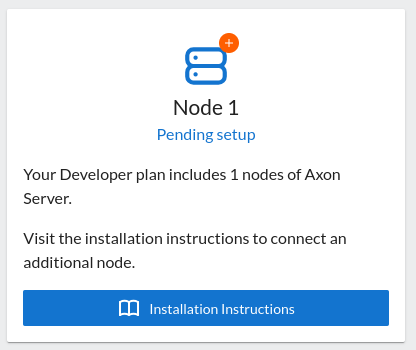

axon server install button
Figure 1. Installation button

You will then see all the options to install Axon Server.

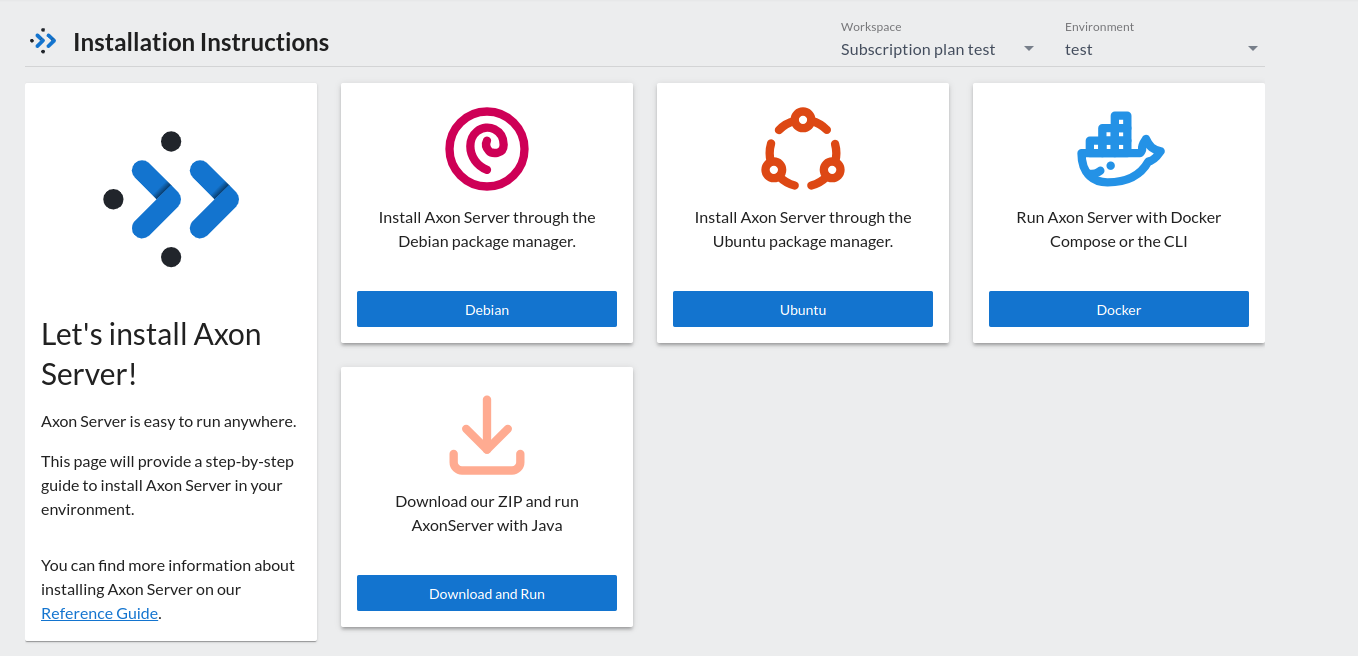

axon server install page
Figure 2. Installation page

Axoniq Platform will guide you further through the process from there on out.

Authentication

Axon Server authenticates with the ID of the environment it belongs to and the secret of an access token with the Axon Server connector scope, or All connectors. The installation guide has a token picker that fills these in.

Set them in axonserver.properties:

axoniq.platform.authentication=ENVIRONMENT_ID:ACCESS_TOKEN

When you run Axon Server in a container, use the environment variable axoniq_platform_authentication instead.

When the token is revoked or expires, the cluster is disconnected from Axoniq Platform immediately. Issue a new token and update the property on every node to reconnect.

Exposed operations

The following operations are exposed by Axoniq Platform for Axon Server clients:

Route Description

heartbeat

Simple call to check if the application is still alive.

settings

Returns client configuration settings to Axon Server, including the heartbeat interval, heartbeat timeout, and the interval at which status reports must be sent.

license

Returns the current license for the cluster. The first node of a cluster calls this route when it initializes; after that, Axoniq Platform sends new licenses to the nodes itself. See Licensing.

register-node

Registers an Axon Server node with the platform when it joins the cluster, and returns the cluster configuration the node should use.

status

Receives the periodic health and status report from Axon Server. The payload of this route is the data described in the next section.

Data sent to Axoniq Platform

We will never send content of your event store, or sensitive information of any kind, to Axoniq Platform. The status route receives:

  • Health information

    • Raft consensus replication status

    • Disk usage

    • Connection status

    • Event store status

  • Clients connected, including the command and query streams they hold

  • Optional throughput-limiting state, if rate limiting is active on the cluster

The following is a sample of the data sent to Axoniq Platform:

{
  "clusterConnections": [
    {
      "name": "node-2",
      "connected": true
    },
    {
      "name": "node-3",
      "connected": true
    }
  ],
  "replicationGroups": [
    {
      "name": "default",
      "contexts": [
        "default"
      ],
      "state": "LEADER",
      "commitIndex": 55,
      "commitTerm": 53,
      "lastAppliedIndex": 55,
      "lastAppliedTerm": 53,
      "lastLogIndex": 55,
      "lastLogTerm": 53,
      "firstLogIndex": 1,
      "firstLogTerm": 1,
      "currentTerm": 53,
      "sinceLastMessageFromLeader": 0,
      "leaderId": "node-1-86eff246-10da-4c81-bacb-ed7058b1d301",
      "leaderName": "node-1",
      "nodes": [
        {
          "nodeId": "node-1-86eff246-10da-4c81-bacb-ed7058b1d301",
          "nodeName": "node-1",
          "role": "PRIMARY"
        },
        {
          "nodeId": "node-2-cbf8ea8b-304b-4875-877e-73e2c85b24f4",
          "nodeName": "node-2",
          "role": "PRIMARY"
        },
        {
          "nodeId": "node-3-8e063d6b-c6d4-42fa-b861-8daaf037c1dd",
          "nodeName": "node-3",
          "role": "PRIMARY"
        }
      ]
    },
    {
      "name": "_admin",
      "contexts": [
        "_admin"
      ],
      "state": "FOLLOWER",
      "commitIndex": 819,
      "commitTerm": 49,
      "lastAppliedIndex": 819,
      "lastAppliedTerm": 49,
      "lastLogIndex": 819,
      "lastLogTerm": 49,
      "firstLogIndex": 1,
      "firstLogTerm": 1,
      "currentTerm": 49,
      "sinceLastMessageFromLeader": 85,
      "leaderId": "node-2-0b44ce3f-a2b7-4046-83d7-553d2f7d2bf9",
      "leaderName": "node-2",
      "nodes": [
        {
          "nodeId": "node-1-4a6b7f32-3c82-405e-8022-adee9d899841",
          "nodeName": "node-1",
          "role": "PRIMARY"
        },
        {
          "nodeId": "node-2-0b44ce3f-a2b7-4046-83d7-553d2f7d2bf9",
          "nodeName": "node-2",
          "role": "PRIMARY"
        },
        {
          "nodeId": "node-3-01fa4e7c-f7b2-4849-ab41-8ae9ee03c270",
          "nodeName": "node-3",
          "role": "PRIMARY"
        }
      ]
    }
  ],
  "clients": [
    {
      "clientStreamId": "1@abcdef123456.6eb977b4-d654-46b2-af2b-75834390e0ee",
      "clientId": "1@abcdef123456",
      "context": "default",
      "commandStreams": [
        {
          "streamId": "1@abcdef123456.ce673215-eeeb-4aed-9914-62d6095af18a",
          "waitingMessages": 0,
          "permits": 5000
        }
      ],
      "queryStreams": [
        {
          "streamId": "1@abcdef123456.c90fdfaf-d13f-41f3-87a4-faeda199f238",
          "waitingMessages": 0,
          "permits": 5000
        }
      ]
    }
  ],
  "eventStores": [
    {
      "contextName": "default",
      "lastEvent": -1,
      "lastSnapshot": -1,
      "waitingEventTransactions": 0,
      "waitingSnapshotTransactions": 0
    }
  ],
  "diskPaths": [
    {
      "name": "default-EVENT-event",
      "path": "/Users",
      "freeBytes": 406694666240
    },
    {
      "name": "replication-logs",
      "path": "/Users",
      "freeBytes": 406694666240
    }
  ]
}
